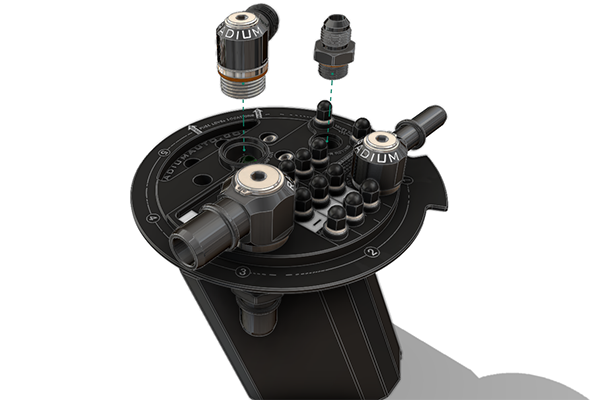

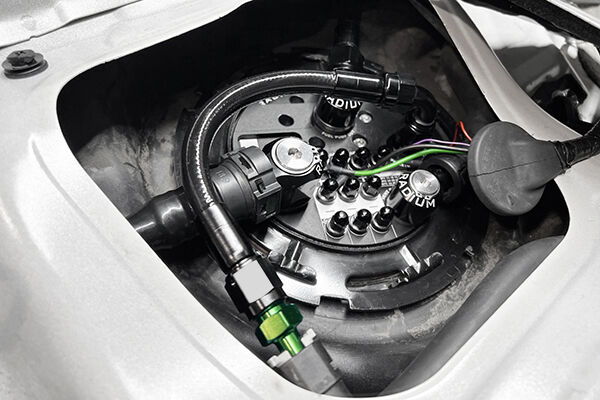

Radium 2016+ Honda Civic Fuel Pump Hanger
SKU:
20-1080
$949.00
Backorder Available
Ships in 7-14 days
FUEL STARVATION PROTECTION
Several mechanisms work together to move fuel into the integrated collector and keep it full at all times. This ensures the pump(s) have adequate fuel available, even during aggressive driving. The integrated fuel tank collector is supplied with fuel from 3 different sources:
1. The 1-piece anodized aluminum collector box keeps fuel trapped around the pump inlet(s).
2. There are three 1-way fill valves incorporated in the bottom of the collector box that allows fuel in, but not out. Each 1-way fill valve flows 355 LPH.
3. The collector box is constantly replenished with fuel returning from the pressure regulator.
ELECTRICAL
The custom designed stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. They have an anti-rotation feature that prevents the terminals from spinning. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.
NOTES
1. Single pump installations can re-use the OEM fuel pump wiring.
2. It is recommended to upgrade OEM wiring to ensure the single pump is receiving full power and operating at maximum potential.
3. If using additional pumps, new dedicated relays and fuses MUST be used for each pump.
4. Universal fuel pump wiring kits can be found HERE. Select one for each aftermarket pump.
FEATURES
-Drop-In Installation
-Aluminum and Stainless Construction
-Merged 10AN ORB Female Pump-Out Port
-Compatible with Various Pumps
-Brushless Fuel Pump Capable
-Capable of Running 1-3 Fuel Pumps
-Anti-Rotation Electrical Terminals
-High Current Electrical Hardware
-Gas, Methanol, and E85 Compliant
FUEL PUMP COMPATIBILITY

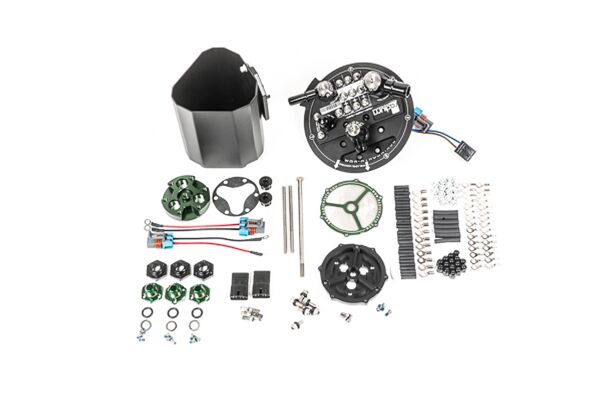

NOTE: There will be enough components included to use 1, 2, or 3 fuel pumps. Depending on the setup, some parts will simply not be used.
P/N: 20-1080
AEM 50-1220
Deatschwerks DW440 Brushless
COMPATIBILITY
2016+ Honda Civic
17-21 Honda Civic Type-R
*11th gen Civics use a compatible fuel tank, excluding FL5 Type-R
