Radium Fuel Pump Hanger suit Mitsubushi Lancer EVO 1-6
SKU:
20-1330
$929.00
In Stock
In Stock
OVERVIEW

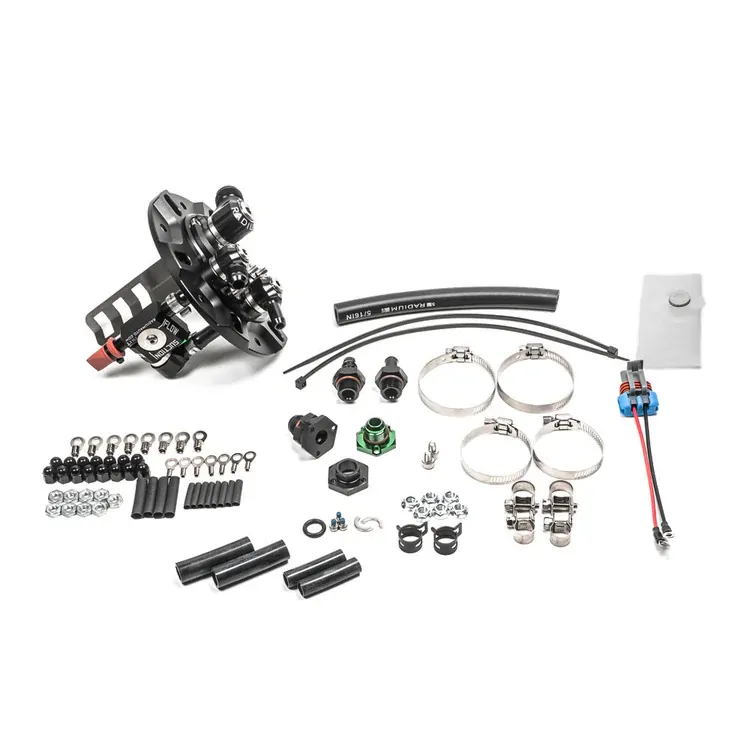

This Radium Engineering single pump hanger is compatible with a variety of aftermarket fuel pumps ranging from 340LPH to 810LPH. Both (2-wire) brushed and (3 or 4-wire) brushless pumps can be used.
The kit is compatible with the OEM gauge cluster readings as both the OEM fuel level sensor and the OEM low fuel indicator are reused.
As shown above, a new high flow PRV venturi jet pump is provided. This has a built-in pressure relief valve that bypasses high fuel pressure in the return line. This feature keeps fuel rail pressure stabilized.
FITTINGS

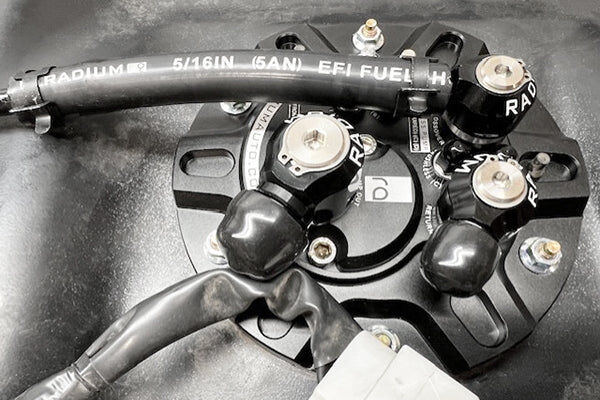

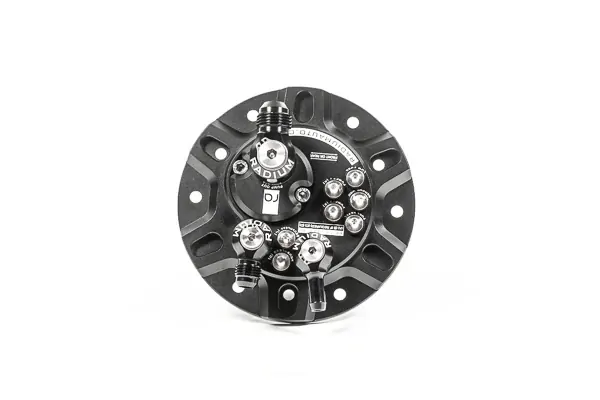

The fuel pump outlet is tapped for 8AN ORB (3/4"-16) female threads on the top plate. A low profile 8AN male fitting is provided to connect to an aftermarket fuel line (not included). The fuel return inlet is tapped for 6AN ORB (9/16"-18) female threads on the top plate. A low profile 6AN male adapter is provided to connect to an aftermarket fuel line (not included).
All fittings are machined low enough to clear the surrounding area.
FUEL STARVATION PROTECTION
The OEM fuel tank has a built-in collector bowl
It has a labyrinth that prevents fuel from escaping during aggressive driving. The collector bowl is constantly replenished with fuel from both the pressure regulator and the crossover hose
The crossover hose pulls from from the passive side of the saddle tank and is driven by the PRV venturi jet pump.
ELECTRICAL
The custom designed stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. They have an anti-rotation feature that prevents the terminals from spinning. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.
NOTES

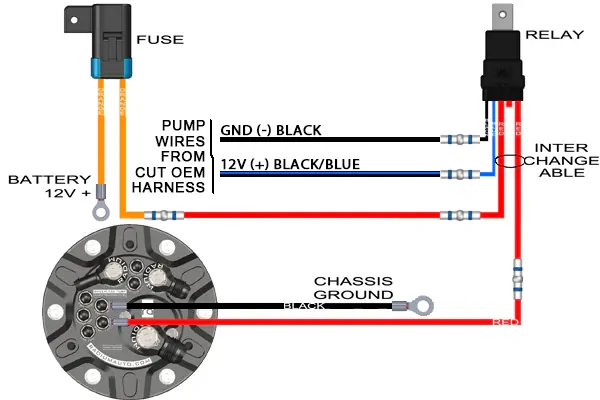

1. Installations can re-use the OEM fuel pump wiring.
2. It is recommended to upgrade OEM wiring to ensure the pump is receiving full power and operating at maximum potential.
3. Universal fuel pump wiring kits can be found HERE.
FEATURES
-Simple Drop-In Installation
-Aluminum and Stainless Construction
-Compatible with Various Pumps
-Brushless Fuel Pump Capable
-Anti-Rotation Electrical Terminals
-High Current Electrical Hardware
-Gas, Methanol, and E85 Compliant
Description
20-1330 COMPATIBILITY
Mitsubishi Evolution I
Mitsubishi Evolution II
Mitsubishi Evolution III
Mitsubishi Evolution IV
Mitsubishi Evolution V
Mitsubishi Evolution VI
FUEL PUMP COMPATIBILITY
AEM 50-1220
Walbro F90000267
Walbro F90000274
Walbro F90000285
Walbro F90000295
Protec 11928 (brushless)
Fuelab 49614 (brushless)
Deatchwerks DW400
Deatchwerks DW440 (brushless)
Deatchwerks DW810 (brushless)
