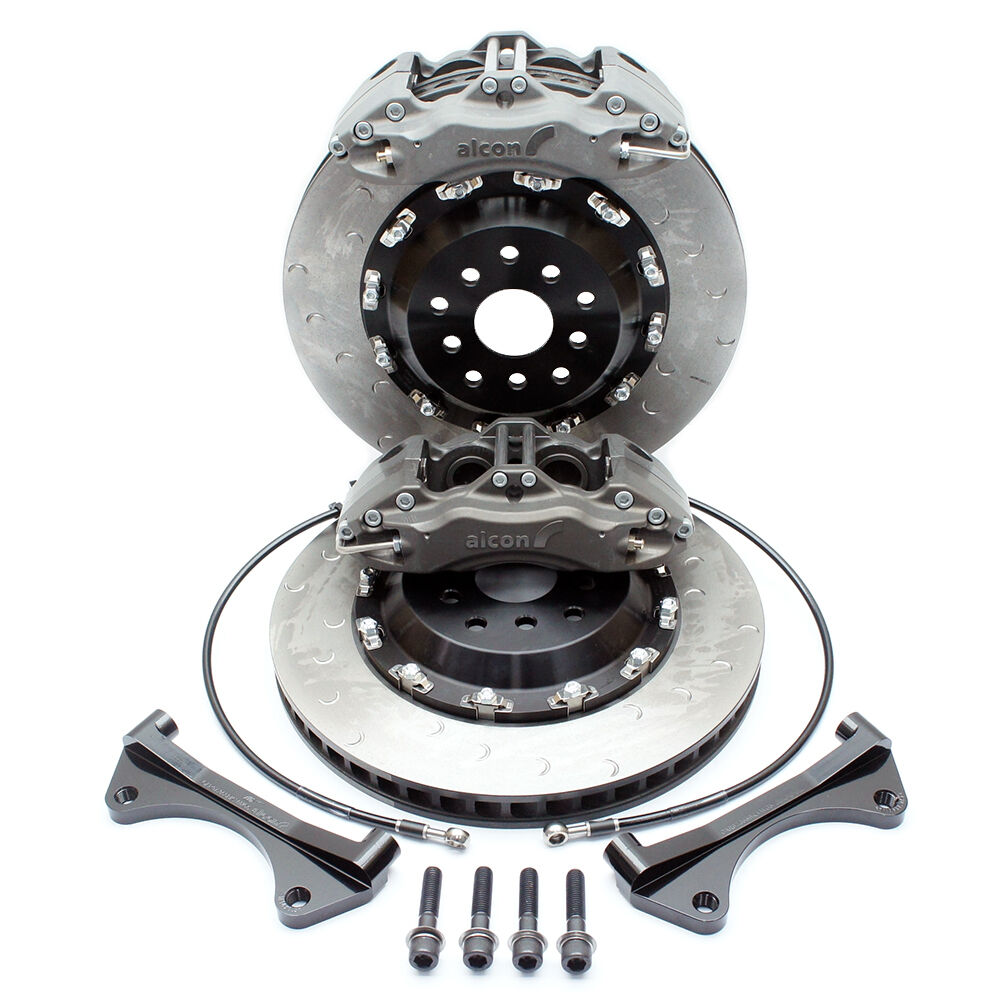

Alcon Front Bolt on Big Brake Kit - Hyunidai I20N 332mm x 28mm
Track performance, on the road.
We use our extensive knowledge of specialist and performance braking solutions in all of our applications, including aftermarket brake kits. At Alcon, we can transform the braking ability of a wide range of cars and in all environments from every day driving to high intensity track work. All our braking systems are tested far beyond anything even the most demanding customer will be able to subject them to. And reducing stopping distances is just the start.
As racers and road car enthusiasts ourselves, we are no less interested in the feel that the brakes provide. We also know that our brakes must work from the first application in a sub-zero climate, to the last corner of a lap record run. They must be lightweight, but also exceptionally durable. They should be quiet but resistant to fade in even the most extreme circumstances.
Alcons brake kits are specifically engineered to give you exceptional braking performance and are the pinnacle of aftermarket brake kits. Whether you choose an Advantage Extreme brake kit or a range-topping RC4/RC6 kit, you can be sure that in every area that matters, your Alcon brakes will excel.
CRB343:
- 4-Piston Forged Race Caliper Front/Rear
- Applications: Rally, Group N+, Touring Car and General Race use.
- Disc diameter range: ø280 - 343mm
- Radial mount for maximum rigidity and firm, consistent pedal
- Differential piston diameters to minimise pad taper wear
- 2kg anti-knock back springs
- Hard stainless steel wear plates
- Fixed pad retainer bars to increase stiffness, remove caliper to change pads
- Not dust sealed
CAR98:
- 4-Piston Monobloc Caliper Front or Rear
- Gravity die cast for monobloc constructions using aluminium alloy for optimum strength and weight.
- Monobloc piston design for high stiffness (firm pedal) with low weight.
- Piston bore sizes are staggered to ensure even pad wear.
- Pin-mounted pads provide low threshold pressure and low noise.
CAR49 TA4+:
Key features and benefits
- Forged aerospace aluminum provides high strength and light weight
- Ventilated stainless steel pistons with low friction coating
- Hard steel wear plates
- Bolted pad retainer to increase stiffnessSpecifications
- Rotor diameter range 13” – 13.5” (ø332 – 343mm)
- Rotor thickness range 1.25” (32mm)
- Fluid inlet 3/8” – 24 UNF (-3)
- Dry weight 5.58lb (2.54kg)
- Alcon pad reference: 4441, 16mm thick
- DUST SEALS? YES
