Radium Fuel Vent Charcoal Canister Service Kit for 20-0828
SKU:
20-0828-SK
$59.00
Backorder Available
Out Of Stock

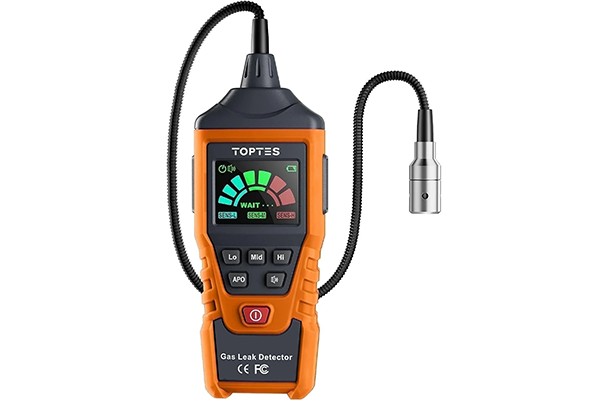

All probe testing was measured inside the atmopsheric exit of the fuel tank vent.
-Without the charcoal canister installed, the gas detector maxed out over 10,000 ppm of fuel vapor.
-With the charcoal canister installed, the gas detector did not measure any fuel vapor (<50 ppm).
CONSTRUCTION

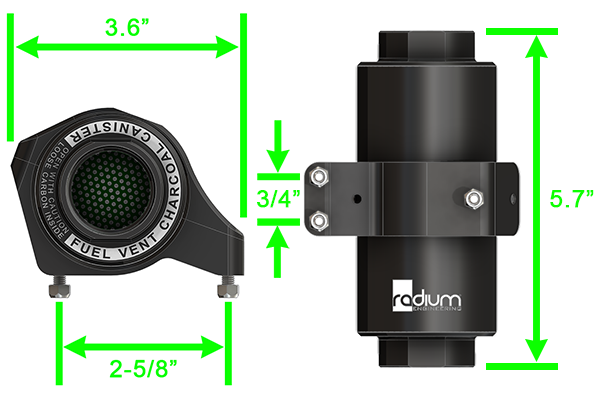

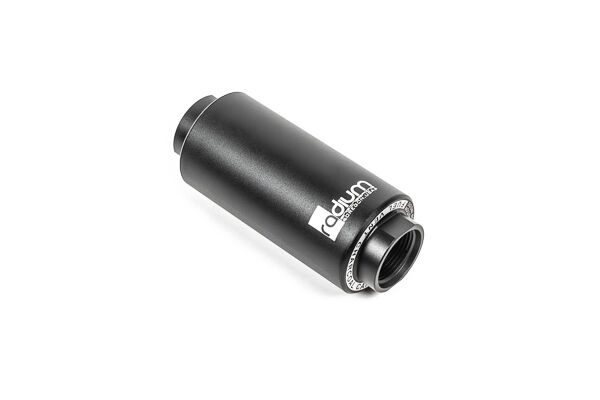

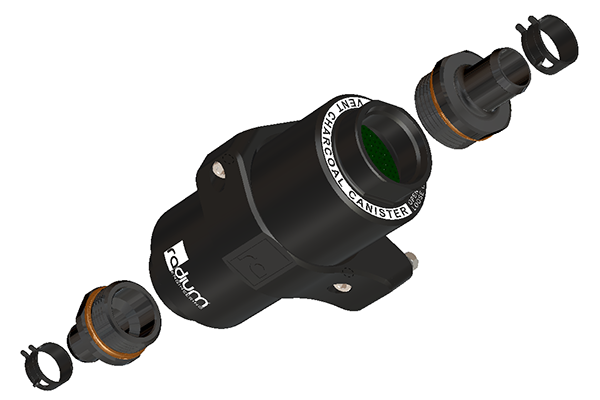

The 3-piece charcoal canisters are CNC machined from 6061 aluminum. They are Type-II anodized for maximum corrosion resistance. The 16AN ORB female end caps (shown below) are sealed to the body with FKM O-rings.

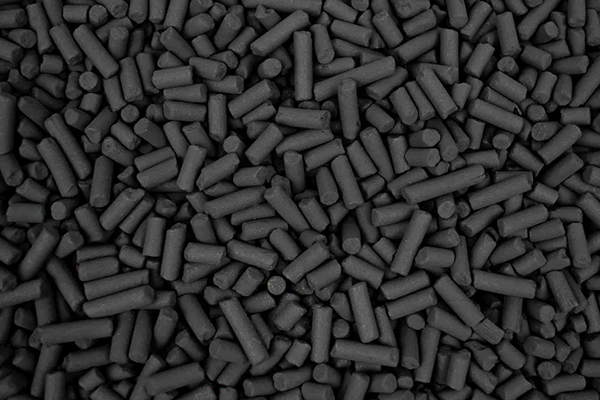

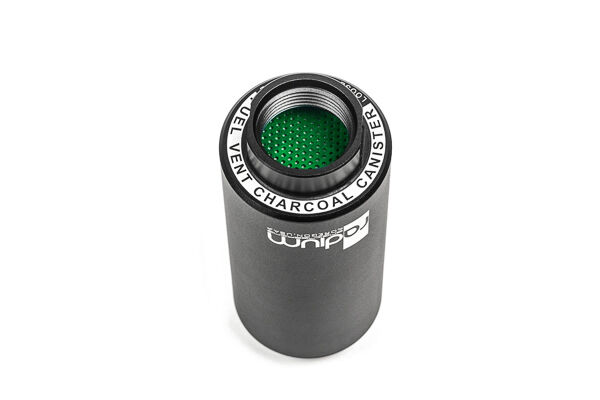

The preassembled vibratory-packed carbon resides inside 150 micron strainers and anodized aluminum baffles (shown above). This prevents any loose carbon media debris to escape from the canister.
FUEL VENT CHARCOAL CANISTER KITS
NOTES:
1. For high flow fuel venting, the end caps on all fuel vent charcoal canister kits (below) feature large -16AN ORB female threaded ports.
2. For mounting, all charcoal canister kits (below) feature a 2-piece anodized aluminum billet clamp. Three stainless steel M5x0.8mm screws are used to mount the clamp to the vehicle and two additional M5x0.8mm screws are used to secure the clamp halves together.

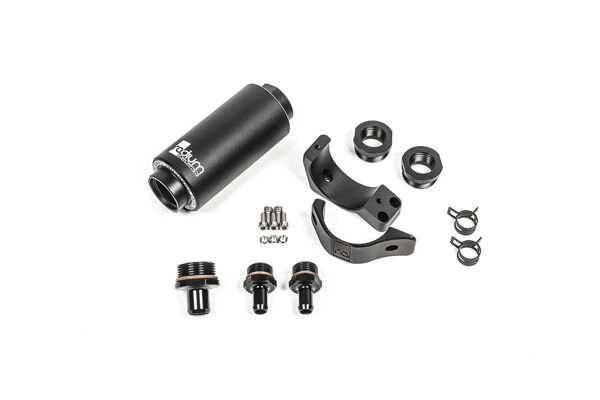

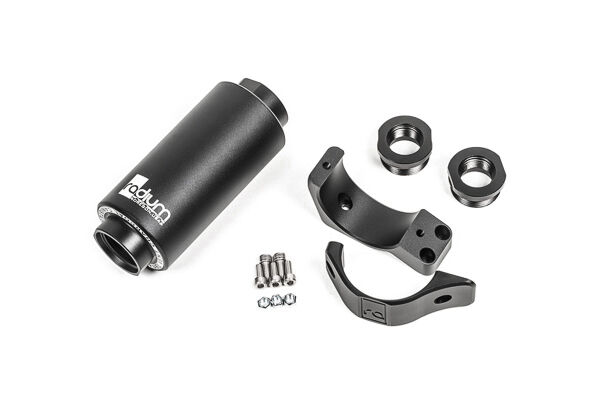

20-0828-00 FUEL VENT CHARCOAL CANISTER, UNIVERSAL
This kit includes two 16AN ORB male to 10AN ORB female couplers.
NOTE: For classic cars, most fuel tanks use either 1/4" (6mm), 5/16" (8mm), or a 3/8" (10mm) vent line.

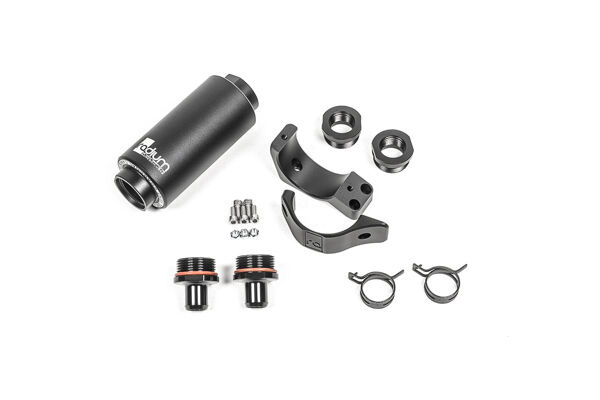

20-0828-08 FUEL VENT CHARCOAL CANISTER, FOR 1/2IN HOSE
This kit is designed to use 1/2" fuel vent hose.
Fortunately, the canister can be disassembled and recharged with fresh charcoal and new 150 micron strainers using Radium Engineering P/N: 20-0828-SK.
20-0828-00 FUEL VENT CHARCOAL CANISTER, UNIVERSAL
This kit includes two 16AN ORB male to 10AN ORB female couplers.
20-0828-08 FUEL VENT CHARCOAL CANISTER, FOR 1/2IN HOSE
This kit is designed to use 1/2" fuel vent hose.
20-0828-12 FUEL VENT CHARCOAL CANISTER, FOR 3/4IN HOSE
This kit is designed to use 3/4" fuel vent hose.
20-0828-SK SERVICE KIT FOR FUEL VENT CHARCOAL CANISTER
Recharging the fuel vent charcoal canister will not be a frequent occurence but will depend on usage. For instance, if the internal carbon becomes overly saturated, filtration efficiency will be reduced.
